πŸ—ΊοΈ Visual SLAM

This project has code for running Visual SLAM in the Robot Operating System (ROS) with GPU acceleration and testing in a ray traced simulation

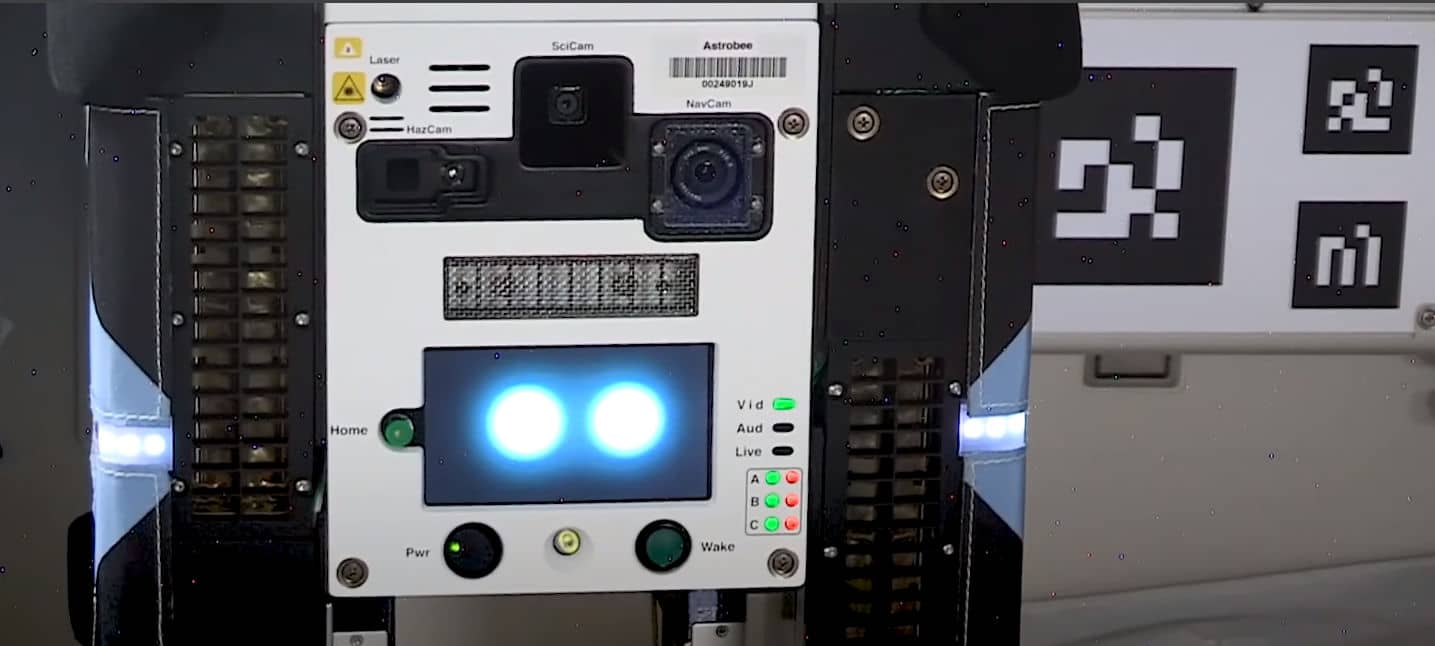

In robotics and computer vision, Visual Simultaneous Localization and Mapping (VSLAM) emerges as a pivotal technique for estimating the position and orientation of a robot or camera in real-time, while simultaneously constructing a map of the surrounding environment. This dual capability makes Visual SLAM particularly advantageous in scenarios where GPS is either unavailable or unreliable, such as indoor environments, urban areas with significant obstructions, or undiscovered planets.


Visual Odometry (VO)

At the core of VSLAM is Visual Odometry (VO), a method that utilizes images captured by cameras to track the movement of key points β€” distinctive features within the images. By analyzing the positional changes of these key points across consecutive images, VO estimates the motion of the camera. This process is akin to the way humans perceive motion by observing how objects shift relative to one another.

Visual-Inertial Odometry (VIO)

To enhance the accuracy of motion estimation, Visual-Inertial Odometry (VIO) comes into play. VIO integrates visual data from cameras with motion data from an Inertial Measurement Unit (IMU). The IMU provides additional information on acceleration and angular velocity, which is particularly beneficial in environments with few distinctive visual features. By combining these data sources, VIO offers a more robust and accurate odometry estimate, making it a critical component of effective VSLAM systems.

Pose Graph (PG)

A pose graph is a data structure used to represent the trajectory of a robot or camera through an environment and the relationships between different poses (positions and orientations) along that trajectory. Each node in the graph represents a pose, and each edge represents a spatial constraint or transformation between two poses.

  1. Nodes:
    • Poses: Each node in the graph represents a pose of the robot or camera at a specific time. A pose typically includes the position (x, y, z) and orientation (roll, pitch, yaw) in 3D space.
  2. Edges:
    • Constraints: Each edge in the graph represents a spatial constraint between two poses. This constraint could be derived from sensor measurements such as visual features, odometry, or IMU data. Edges can represent transformations (e.g., relative motion) or direct observations (e.g., loop closures).

Efficient representation of pose graphs require specific data structures to handle large amounts of data and complex operations such as optimization. Common data structures and techniques include:

  1. Graphs:

    • Adjacency Lists: Pose graphs are often implemented using adjacency lists, where each node maintains a list of connected nodes (neighbors) along with the corresponding edge constraints. This structure is memory-efficient and supports efficient traversal.
  2. Sparse Matrices:

    • Information Matrices: For graph optimization, the constraints between poses are represented using sparse matrices. Sparse matrices are efficient for storing and manipulating large, mostly empty matrices, which are common in pose graphs where each pose is only connected to a few others.
  3. Data Association Structures:

    • KD-Trees or Hash Tables: These are used for fast nearest-neighbor searches and data association tasks. KD-trees efficiently manage spatial data for quick retrieval of nearby points, which is essential for matching visual features or landmarks.
  4. Optimization Techniques:

    • Nonlinear Optimization Algorithms: Techniques such as Gauss-Newton, Levenberg-Marquardt, or gradient descent are used for optimizing the pose graph. These algorithms iteratively adjust the poses to minimize the overall error in the graph based on the constraints.
    • Robust Cost Functions: Functions like Huber loss or Tukey's biweight are used to handle outliers in the optimization process, making the system robust to erroneous measurements.

Loop Closure (LC)

Loop Closure refers to the process of recognizing when a robot has returned to a previously visited location. This recognition is essential for correcting accumulated errors in the estimated positions of landmarks and the trajectory of the robot.

  1. Pose Insertion:

    • Odometry Updates: As the robot moves, new poses are added to the graph based on odometry or visual odometry updates.
  2. Edge Addition:

    • Relative Transformations: Edges are added to represent relative transformations between consecutive poses.
    • Loop Closures: When a loop closure is detected, an edge is added between the current pose and a previously visited pose.
  3. Recognition of Revisited Locations:

    • Landmark Identification: As the robot navigates an environment, it detects and tracks distinctive features (landmarks) within the images captured by its cameras. These features are stored along with their estimated positions.
    • Detection of Known Landmarks: When the robot revisits a location, it recognizes previously mapped landmarks in the current image frame. This recognition is based on the similarity of the features detected in the current view to those stored in the map.
  4. Data Association:

    • Associating Landmarks: The system verifies that the detected landmarks in the current image correspond to those previously observed. This association helps in confirming that the robot has indeed returned to a known location.
  5. Pose Graph Update:

    • Adding Connections: Once loop closure is detected, a new edge is added to the pose graph. This edge represents the connection between the current pose of the robot and the previously visited pose where the landmarks were initially observed.

Graph Optimization (GO) After LC

  1. Pose Graph Optimization:

    • Global Adjustment: After detecting a loop closure, the pose graph, which tracks the robot's poses and the relationships between them, is optimized. This process involves adjusting the positions of all nodes (poses) in the graph to minimize the overall error.
    • Consistent Trajectory: The optimization ensures that the trajectory of the robot and the positions of landmarks are consistent with the observations made during the loop closure.
  2. Improved Odometry:

    • Odometric Pose Correction: The current and previous poses are corrected based on the loop closure information, leading to improved odometry estimates.
